Smart Voice Access for Vertical Market


  • Push to talk to hypermarket help desk & wireless intercom, exhibition info center, hospital service desk or warehouse control center
  • G.722 HD Voice powered by industry proven DECT technology
  • Capable for large scale deployment – up to 4,000 voice nodes per base station, radius of 300M transmission range
  • Flexible installation – battery-powered remote voice node can be placed on anyplace
  • Low maintenance – plug-n-play base station requires no computer system, add more voice accesses in seconds
  • Patented

Alexa Wi-Fi Module


Module Specification for portable speaker/speakerphones

Wi-Fi portable speaker

  • Alexa Voice Service embedded
  • Wi-Fi SoC: Realtek RTL8197FS
  • Board Size: 32 mm * 27 mm
  • CPU: 1 GHz on MIPS 24Kc Core
  • Memory: Embedded 128MB DDR2
  • Wi-Fi: 802.11 b/g/n, 2.4GHz, 2*2 MIMO, 300 Mbps
  • LAN: 10/100 Mbps
  • Storage: SPI Flash 32MB
  • USB Host: USB 2.0 * 2
  • Audio Interface: I2S, UAC
  • OS: Linux (OpenWRT)

Far-field Voice Activation

  • DSP: DSPG DBMD5P
  • Interface: I2S, digital & analog microphone interfaces
  • Storage: code downloaded from RTL8197FS
  • Features: Far-field, ANC, AEC, Wake-word Detection, wireless intercom, voice access
  • Voice Activation: Amazon Wake-word Engine, Barge-in

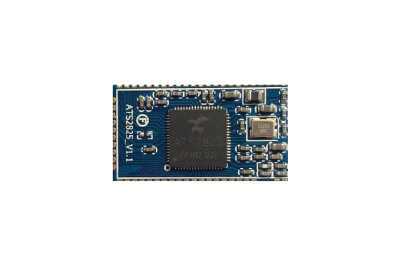

Alexa Mobile Accessory Bluetooth Module


Module Specification

Bluetooth

  • Alexa Mobile Accessory embedded
  • CPU: ATS2825 dual-mode SoC
  • Memory: 280KB internal SRAM
  • Storage: 4MB NOR Flash
  • Network: BT 5.0 compatible (Classic & LE)
  • Interface: UART, I2S, I2C, LED, SPI, GPIO
  • OS: Realtime OS

Far-field Voice Activation

  • DSP: DSPG DBMD5P
  • Interface: I2S, digital & analog microphone interfaces
  • Storage: code downloaded from ATS2825
  • Features: Far-field, ANC, AEC, Wake-word Detection, intercom
  • Voice Activation: Amazon Wake-word Engine, Barge-in
